CNG DISPENSER

DOUBLE NOZZLE CNG DISPENSER

GENERAL SPECIFICATIONS
SERVICE TYPE	LIGHT DUTY VEHICLE (AUTOMOBILE)
NOZZLE TYPE	NGV1
GAS TYPE	DENSITY BETWEEN 0,65….0,87 KG/M³ PRESSURED NATURAL GAS
OPERATING TEMPERATURE RANGE	-25……+55 °C
NOMINAL PRESSURE	220 BAR G
MAX. PRESSURE	250 BAR G
ACCURACY	+/- %0,5
POWER SUPPLY	230 VAC +/-%15 50 HZ
EQUIPMENT	DRY AIR 6…12 BAR G
NOMINAL FLOW	25 KG/MIN
MAXIMUM FLOW	60 KG/MIN

CNG DISPENSERS, DESIGNED FOR FILLING LIGHT AND HEAVY DUTY VEHICLES IN PUBLIC AND PRIVATE CNG FILLING STATIONS.

COULD ASSEMBLE EVERYWHERE WANTED WITHOUT ANY EXTRA PROTECTION.

MID APPROVED ELECTRONIC CONTROL UNIT, COMPLY WITH OIML STANDARDS, HAS RS232, RS485 AND CURRENT LOOP COMMUNICATION PORTS.

SUPPORTS WAYNE DART AND GILBARCO PROTOCOLS. (OPTIONAL).

DISPLAY HAS WIDE VIEWING ANGLE, YELLOW – GREEN LED ILLUMINATED, POSSIBILITY TO SEE MENU OPERATIONS.

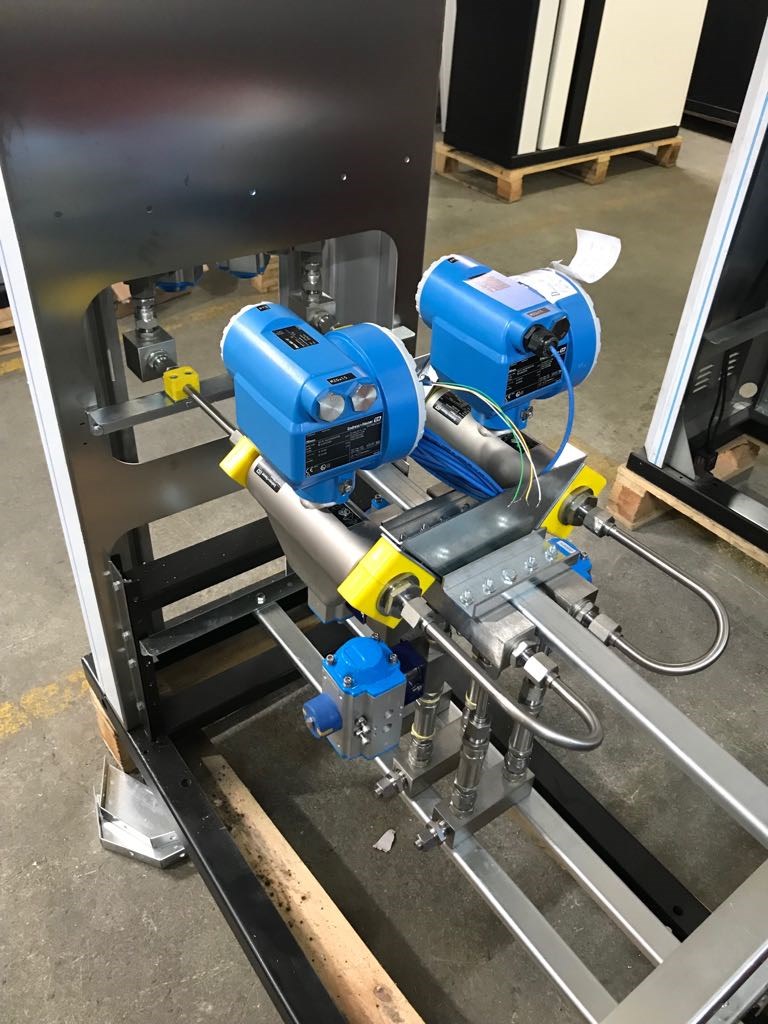

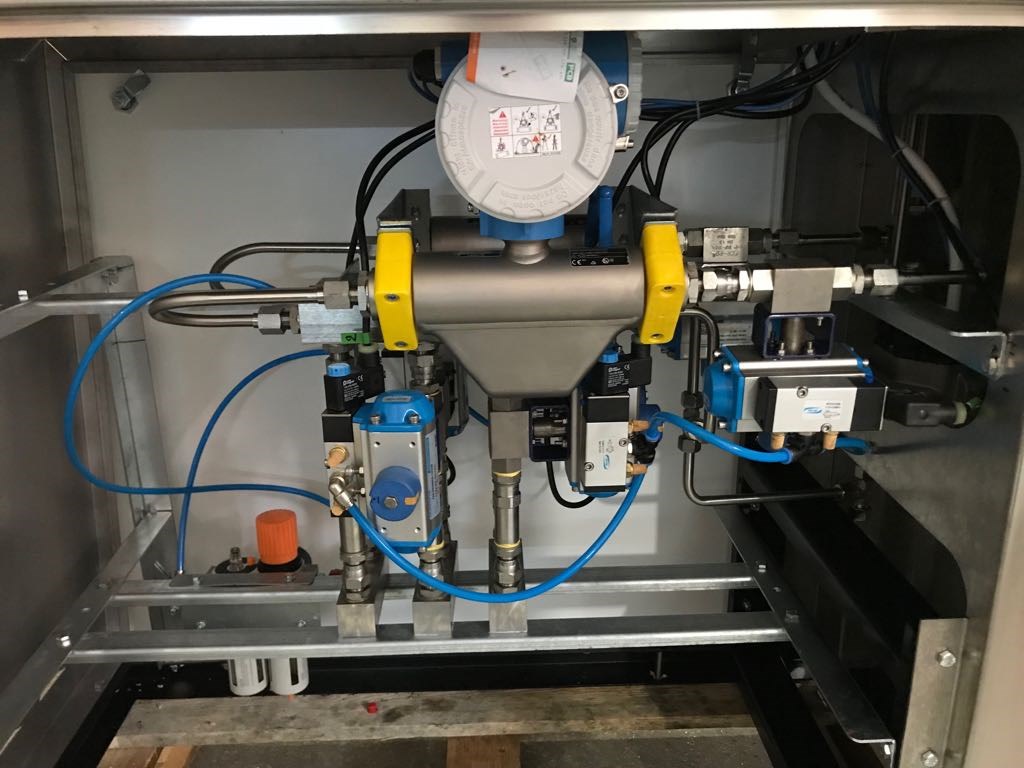

HAS CNG MASS FLOWMETER.

ASSEMBLY AND TESTING OF CNG DISPENSERS ARE ACCORDING WITH EUROPEAN STANDARDS.

COMPLIES WITH ATEX AND MID DIRECTIVES.
